Chart Examples

This guide showcases the different chart configurations available through the tibber_prices.get_apexcharts_yaml action.

Quick Start: Call the action with your desired parameters, copy the generated YAML, and paste it into your Lovelace dashboard!

Entity ID tip

<home_name> is a placeholder for your Tibber home display name in Home Assistant. Entity IDs are derived from the displayed name (localized), so the exact slug may differ. Can't find a sensor? Use the Entity Reference (All Languages) to search by name in your language.

Finding your Entry ID (entry_id)

Every example below contains entry_id: YOUR_CONFIG_ENTRY_ID. This value identifies which Tibber home (integration instance) the action targets.

In the Action UI (Developer Tools → Actions or the automation editor): The entry_id field is a dropdown — just select your Tibber home and HA fills in the correct ID automatically.

In YAML: Go to Settings → Devices & Services, find the Tibber Prices card, open the ⋮ (three-dot) menu, and choose "Copy Config Entry ID". Paste the copied value in place of YOUR_CONFIG_ENTRY_ID.

Overview

The integration can generate 4 different chart modes, each optimized for specific use cases:

Mode	Description	Best For	Dependencies
Today	Static 24h view of today's prices	Quick daily overview	ApexCharts Card
Tomorrow	Static 24h view of tomorrow's prices	Planning tomorrow	ApexCharts Card
Rolling Window	Dynamic 48h view (today+tomorrow or yesterday+today)	Always-current overview	ApexCharts + Config Template Card
Rolling Window Auto-Zoom	Dynamic view that zooms in as day progresses	Real-time focus on remaining day	ApexCharts + Config Template Card

Screenshots available for:

✅ Today (static) - Representative of all fixed day views
✅ Rolling Window - Shows dynamic Y-axis scaling
✅ Rolling Window Auto-Zoom - Shows progressive zoom effect

All Chart Modes

1. Today's Prices (Static)

When to use: Simple daily price overview, no dynamic updates needed.

Dependencies: ApexCharts Card only

Generate:

Show YAML: Today's Prices (Static)

service: tibber_prices.get_apexcharts_yaml
data:
    entry_id: YOUR_CONFIG_ENTRY_ID
    day: today
    level_type: rating_level
    highlight_best_price: true

Screenshot:

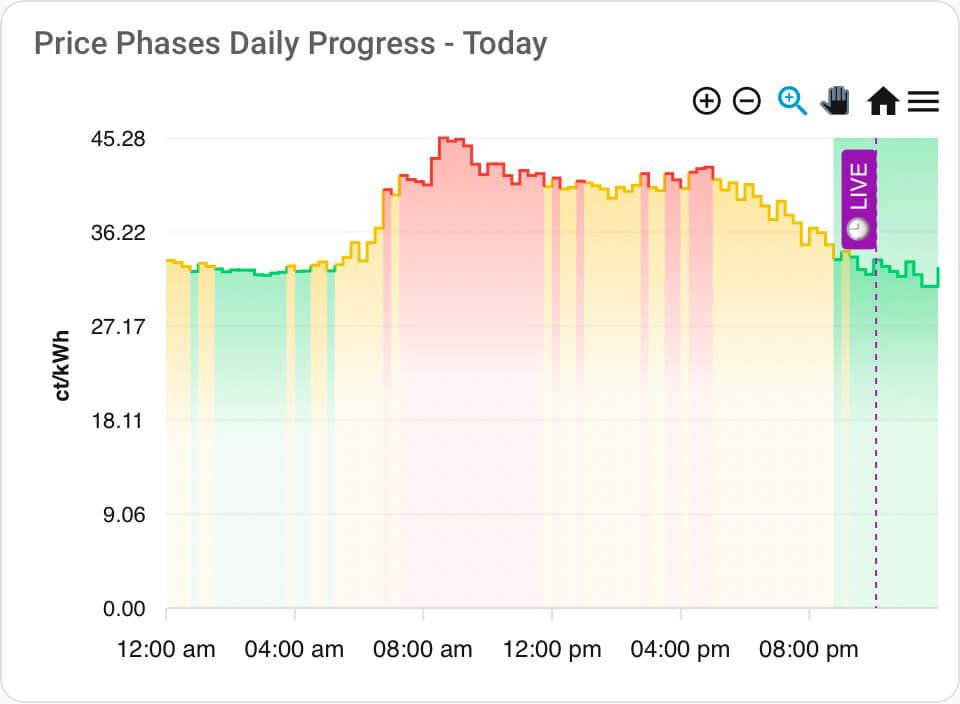

Today's Prices - Static 24h View

Key Features:

✅ Color-coded price levels (LOW, NORMAL, HIGH)
✅ Best price period highlights (vertical bands)
✅ Static 24-hour view (00:00 - 23:59)
✅ Works with ApexCharts Card alone

Note: Tomorrow view (day: tomorrow) works identically to Today view, just showing tomorrow's data. All fixed day views (yesterday/today/tomorrow) use the same visualization approach.

2. Rolling 48h Window (Dynamic)

When to use: Always-current view that automatically switches between yesterday+today and today+tomorrow.

Dependencies: ApexCharts Card + Config Template Card

Generate:

Show YAML: Rolling 48h Window

service: tibber_prices.get_apexcharts_yaml
data:
    entry_id: YOUR_CONFIG_ENTRY_ID
    # Omit 'day' for rolling window
    level_type: rating_level
    highlight_best_price: true

Screenshot:

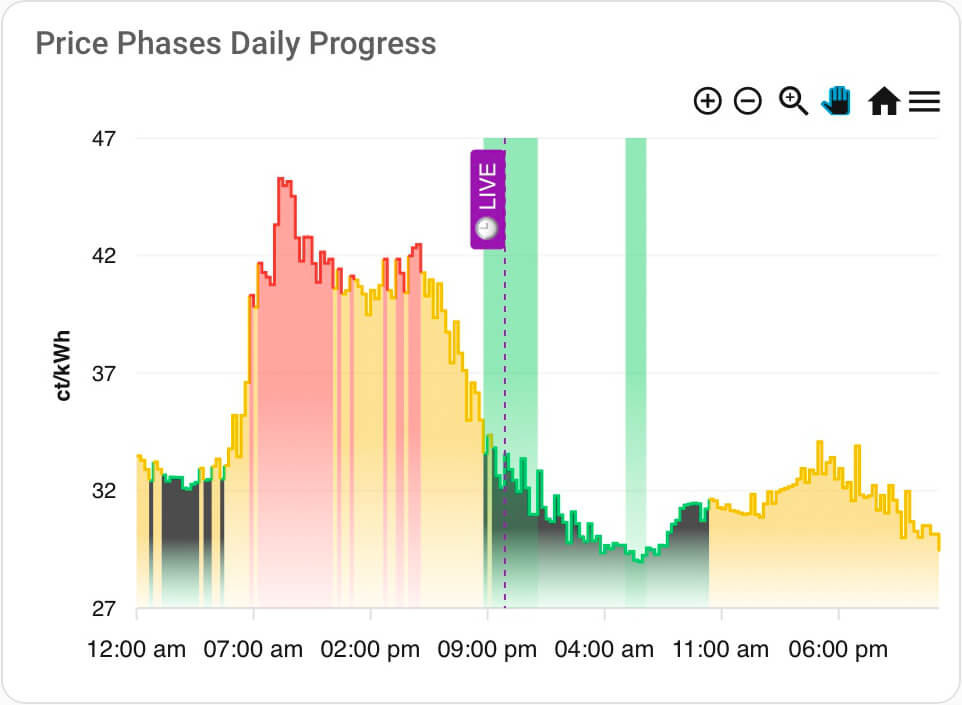

Rolling 48h Window with Dynamic Y-Axis Scaling

Key Features:

✅ Dynamic Y-axis scaling via chart_metadata sensor
✅ Automatic data selection: today+tomorrow (when available) or yesterday+today
✅ Always shows 48 hours of data
✅ Updates automatically when tomorrow's data arrives
✅ Color gradients for visual appeal

How it works:

Before ~13:00: Shows yesterday + today
After ~13:00: Shows today + tomorrow
Y-axis automatically adjusts to data range for optimal visualization

3. Rolling Window Auto-Zoom (Dynamic)

When to use: Real-time focus on remaining day - progressively zooms in as day advances.

Dependencies: ApexCharts Card + Config Template Card

Generate:

Show YAML: Rolling Auto-Zoom

service: tibber_prices.get_apexcharts_yaml
data:
    entry_id: YOUR_CONFIG_ENTRY_ID
    day: rolling_window_autozoom
    level_type: rating_level
    highlight_best_price: true

Screenshot:

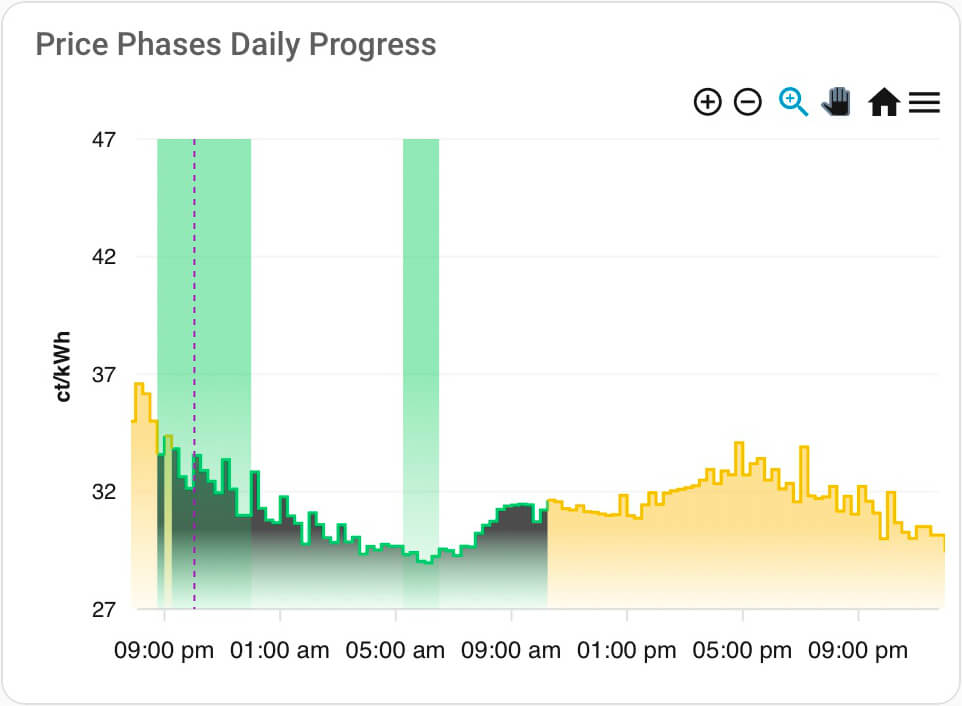

Rolling Window Auto-Zoom - Progressive Zoom Effect

Key Features:

✅ Progressive zoom: Graph span decreases every 15 minutes
✅ Dynamic Y-axis scaling via chart_metadata sensor
✅ Always shows: 2 hours lookback + remaining time until midnight
✅ Perfect for real-time price monitoring
✅ Example: At 18:00, shows 16:00 → 00:00 (8h window)

How it works:

00:00: Shows full 48h window (same as rolling window)
06:00: Shows 04:00 → midnight (20h window)
12:00: Shows 10:00 → midnight (14h window)
18:00: Shows 16:00 → midnight (8h window)
23:45: Shows 21:45 → midnight (2.25h window)

This creates a "zooming in" effect that focuses on the most relevant remaining time.

Comparison: Level Type Options

Rating Level (3 series)

Based on your personal price thresholds (configured in Options Flow):

LOW (Green): Below your "cheap" threshold
NORMAL (Blue): Between thresholds
HIGH (Red): Above your "expensive" threshold

Best for: Personal decision-making based on your budget

Level (5 series)

Based on absolute price ranges (calculated from daily min/max):

VERY_CHEAP (Dark Green): Bottom 20%
CHEAP (Light Green): 20-40%
NORMAL (Blue): 40-60%
EXPENSIVE (Orange): 60-80%
VERY_EXPENSIVE (Red): Top 20%

Best for: Objective price distribution visualization

Dynamic Y-Axis Scaling

Rolling window modes (2 & 3) automatically integrate with the chart_metadata sensor for optimal visualization:

Without chart_metadata sensor (disabled):

Show chart illustration: Without Chart Metadata

┌─────────────────────┐
│                     │ ← Lots of empty space
│      ___            │
│  ___/   \___        │
│_/           \_      │
├─────────────────────┤
0              100 ct

With chart_metadata sensor (enabled):

Show chart illustration: With Chart Metadata

┌─────────────────────┐
│      ___            │ ← Y-axis fitted to data
│  ___/   \___        │
│_/           \_      │
├─────────────────────┤
18             28 ct   ← Optimal range

Requirements:

✅ The sensor.<home_name>_chart_metadata must be enabled (it's enabled by default!)
✅ That's it! The generated YAML automatically uses the sensor for dynamic scaling

Important: Do NOT disable the chart_metadata sensor if you want optimal Y-axis scaling in rolling window modes!

Note: Fixed day views (today, tomorrow) use ApexCharts' built-in auto-scaling and don't require the metadata sensor.

Best Price Period Highlights

When highlight_best_price: true, vertical bands overlay the chart showing detected best price periods:

Example:

Show chart illustration: Best Price Period Highlights

Price
  │
30│           ┌─────────┐  Normal prices
  │           │         │
25│     ▓▓▓▓▓▓│         │  ← Best price period (shaded)
  │     ▓▓▓▓▓▓│         │
20│─────▓▓▓▓▓▓│─────────│
  │     ▓▓▓▓▓▓
  └─────────────────────── Time
       06:00  12:00  18:00

Features:

Automatic detection based on your configuration (see Period Calculation Guide)
Tooltip shows "Best Price Period" label
Only appears when periods are configured and detected
Can be disabled with highlight_best_price: false

Prerequisites

Required for All Modes

ApexCharts Card: Core visualization library

Show shell command: Prerequisite for All Modes

# Install via HACS
HACS → Frontend → Search "ApexCharts Card" → Download

Required for Rolling Window Modes Only

Config Template Card: Enables dynamic configuration

Show shell command: Rolling Window Prerequisite

# Install via HACS
HACS → Frontend → Search "Config Template Card" → Download

Note: Fixed day views (today, tomorrow) work with ApexCharts Card alone!

Tips & Tricks

Customizing Colors

Edit the colors array in the generated YAML:

Show YAML: Custom Color Palette

apex_config:
    colors:
        - "#00FF00"  # Change LOW/VERY_CHEAP color
        - "#0000FF"  # Change NORMAL color
        - "#FF0000"  # Change HIGH/VERY_EXPENSIVE color

Changing Chart Height

Add to the card configuration:

Show YAML: Custom Chart Height

type: custom:apexcharts-card
graph_span: 48h
header:
    show: true
    title: My Custom Title
apex_config:
    chart:
        height: 400  # Adjust height in pixels

Combining with Other Cards

Wrap in a vertical stack for dashboard integration:

Show YAML: Vertical Stack Integration

type: vertical-stack
cards:
    - type: entity
      entity: sensor.<home_name>_current_electricity_price
    - type: custom:apexcharts-card
      # ... generated chart config

Next Steps

Chart Actions Guide: Complete documentation of get_apexcharts_yaml parameters
Chart Metadata Sensor: Learn about dynamic Y-axis scaling
Period Calculation Guide: Configure best price period detection

Screenshots

Gallery

Today View (Static) - Representative of all fixed day views (yesterday/today/tomorrow)
Rolling Window (Dynamic) - Shows dynamic Y-axis scaling and 48h window
Rolling Window Auto-Zoom (Dynamic) - Shows progressive zoom effect

Note: Tomorrow view is visually identical to Today view (same chart type, just different data).
